Surface Settings

The user can start to tweak how the actual world itself is represented in the final image through the surface settings. The surface settings encompass everything to do with rendering world geometry, such as blocks, entities, the player, particles, etc. Continuum exposes settings for both terrain and water Parallax, Shadows, Ambient Light, Specular Reflections, Global Illumination, and general Materials.


Parallax

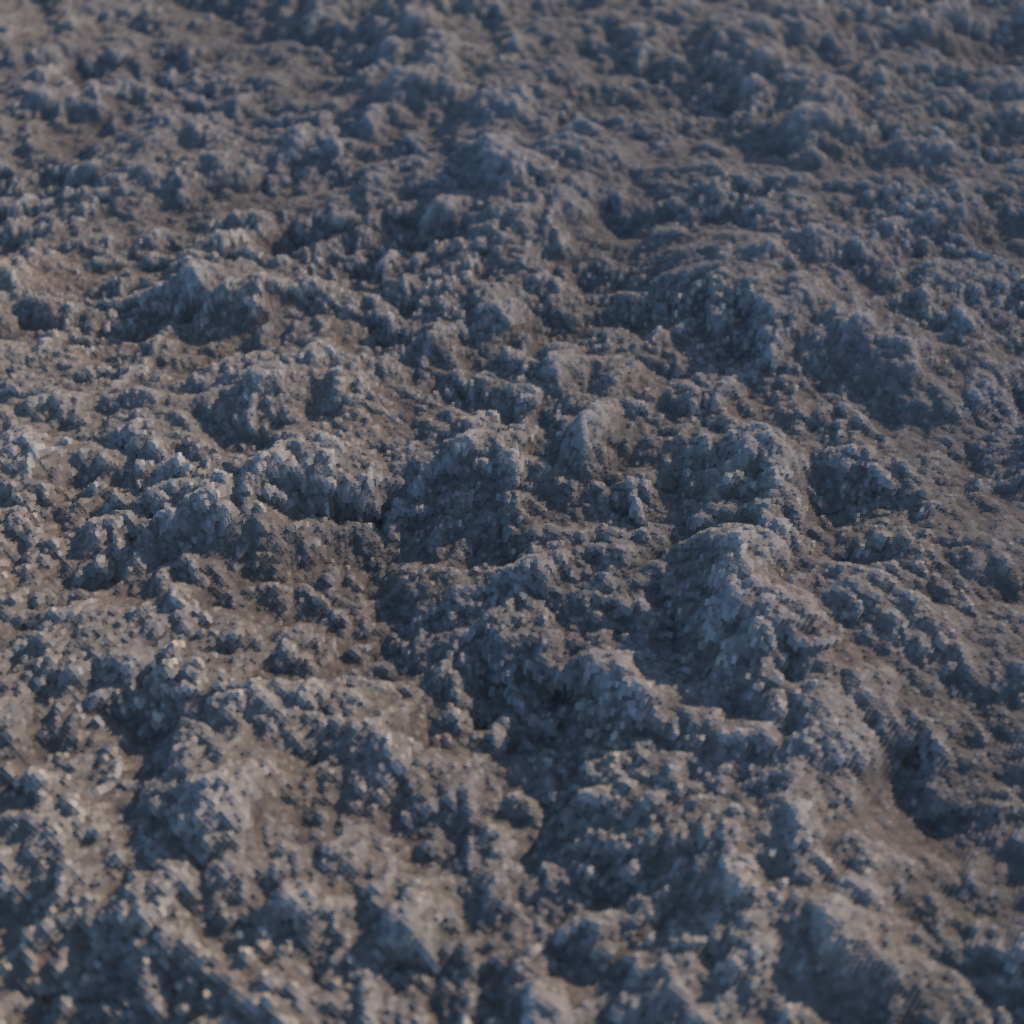

Parallax is an effect that can be used to simulate 3D depth within an otherwise ordinary, 2D texture. Parallax achieves this by using a height map to determine the depth of the surface being rendered. On the terrain, for both general parallax and parallax shadows, the height map is supplied by a resource pack, where on water, the height map is generated procedurally by the code for the waves.

Continuum lets the user change a few settings related to parallax:

Parallax Depth

Parallax depth determines the scale of the height map, which changes how shallow or deep the parallax effect is. A large parallax depth makes the bumps on the surface appear very deep, while lowering the parallax depth makes the surface appear more shallow. Not only is this useful for personalizing Continuum, but it is also useful for tailoring Continuum to different resource packs. Continuum is designed to work with Pulchra, but Pulchra uses a different standard for height units than other resource packs so you have to increase the parallax depth to use Continuum with other resource packs.

                      0.25

                     0.25

                  1 (default)

                 1 (default)

                        2

                       2

Parallax Quality (Water)

Parallax quality is used to determine the amount of steps taken by the ray march, which  improves quality and accuracy. Parallax quality only affects water parallax - terrain parallax can determine the necessary quality automatically. It's much more visible when the water is in motion than in still screenshots.

                   Minimum

                  Minimum

            Medium (Default)

           Medium (Default)

              Cinematic (Max)

             Cinematic (Max)

Parallax Shadows (Terrain)

Parallax shadows are a new effect to Continuum 2.0. Parallax shadows let the surface detail that's rendered with parallax cast shadows, greatly improving realism and cementing the feeling of depth - as the screenshots below illustrate. Turning this setting on turns on parallax shadows

                              On (Default)

                             On (Default)

                                     Off

                                    Off


Shadows

Shadow Type

In Continuum we have 3 shadow types, Hard, Soft, and Dual PCSS. Hard shadows have no filtering. Soft shadows have a uniform blur over them, like soft shadows in most video game. Dual PCSS makes the shadows get softer as they get farther from the shadow caster. Dual PCSS is the most realistic shadow mode, but also the slowest.

Hard

Soft

Dual PCSS

Penumbra Angle

Penumbra angle affects the softness for soft shadows and the rate of softening for Dual PCSS. Increasing the penumbra angle increases the softness of the shadows, while decreasing it decreases the shadow softness. Continuum uses the same penumbra angle as the real world by default, but you may find other settings more visually pleasing

0

15

30

Shadow Resolution

Shadow resolution determines how much detail is captured in the shadows and in global illumination. Increasing shadow resolution means that the shadows can capture more detail about the scene, so they appear more realistic, but they're slower to render. Decreasing shadow resolution makes the shadows faster, but they start to become blocky. You can see that the edge of the shadow isn't quite straight in the image for the 1024 shadow resolution, but with 8192 the shadow edge becomes nice and sharp

Shadow Res: 1024 (1k)

Shadow Res: 2048 (2k)

Shadow Res: 8192 (8k)

Shadow Bias

The shadow bias is a way to bring more shadow detail closer to the player at the cost of distant shadows becoming lower quality.

Shadow Bias: 0.0

Shadow Bias: 0.5

Shadow Bias: 0.85

Caustics

Caustics is the name for the effect where ripples of light appear inside a body of water. It can be a subtle effect, but definitely an important one. Look at the ocean floor in the two images: with caustics off the ocean floor appears flat and boring, but with them on the ocean floor has some interesting detail on it

Caustics off

Caustics on
